ASCO Model 2705 Rental

Asc Lb Ds 2705

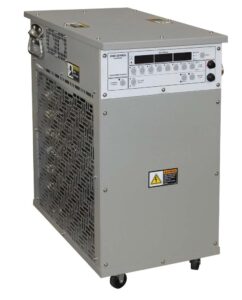

The ASCO Model 2705 are resistive, AC load banks designed for operation indoors when up to 100 kW of resistive load is required.

Cooling System

Proper cooling is provided by four (4) integral cooling fans. The cooling fans are fuse protected.

Operator Controls

The standard local mode is manual control via “digital toggle” switches. The local mode features full digital monitoring and individual load steps with LED indications. The integral control panel is provided for load bank operation and includes the necessary controls and status indicators.

The optional remote control mode is via the hand-held touchscreen controller. It features a 4.3″ color touch screen housed in a rugged and easy to grip industrial grade enclosure. Load selection can be the sum of the entire load string (up to 25 load banks) or individual units within that string. Extremely fast and reliable CANbus communication protocol is used in the SIGMA LT for networking. CANbus protocol reduces network sag which is typically found in RS232 network load banks. A USB port is provided for data download and software updates.

Construction

The 2705 is constructed using heavy gauge aluminized steel per ASTM A463. It is designed for continuous indoor operation. Two (2) moveable and two (2) fixed casters are provided for easy mobility. Handles are provided for lifting the load bank when it is being transported. All exterior fasteners are stainless steel. The 2705 load banks are listed to UL standard 508A.

Finish

The 2705 has a high quality baked polyester powder coated finish with a film thickness of 2.8 +/- 0.4 mils per coat. The standard color is gray (ANSI 61).

Two Year Warranty Included

The equipment is covered by an industry exclusive 24-month parts and labor warranty.

Download Full Data Sheet
